  • classes:Water cooling machine
  • Type:HFW360
  • corresponding boiler:6(T)
  • Fuel consumption:
  • Product description: biomass powder burner
  • INQUIRY

biomass powder burner

Advantages:

HFW sreies biomass powder burner is made up of powder chamber,feeding device,multi-channel eddy oxygen supply and ignition device,and it is equipped with a continuous transportinuous transporting warehousing system and transportation loading system.

Its fuel have broad adaptability,the system can use wood powder,platycodon grandiflorum powder,bamboo powder,palm shell powder,which are made of wood scrap and wood shavings.It has a kind of high efficiency and energy saving combustion system,this system use the moisture within 10%and the size below 3mm biomass powder as fuel.After burning,the flame temperature can be up to 1300℃.

Technical Parameters:

Model burner model Corresponding boiler(t) Rated heat value Rated Voltage(V) Burner efficiency(%) Fuel consumption(kg/h) outsize of fire mouth(mm) length of fire mouth(mm) oxygen sipply device(kw) feeding machine(kw) hydraulic pusher(kw) size(mm)(L*W*H) Weight(t)
water cooler machine HFW360 6 360 380 >95 1050 650 500 15 2.2 3 2100*1100*1800 4
water cooler machine HFW480 8 480 380 1250 750 550 18 3 3 2350*1800*1950 5.5
water cooler machine HFW600 10 600 380 1650 950 650 24 5.5 4 2550*1950*2050 6.8
water cooler machine HFW720 12 720 380 2000 1100 700 27 7.5 5.5 2750*2050*2150 7.5
water cooler machine HFW1200 20 1200 380 3300 1500 900 39 11 5.5 3500*2850*2850 9.5

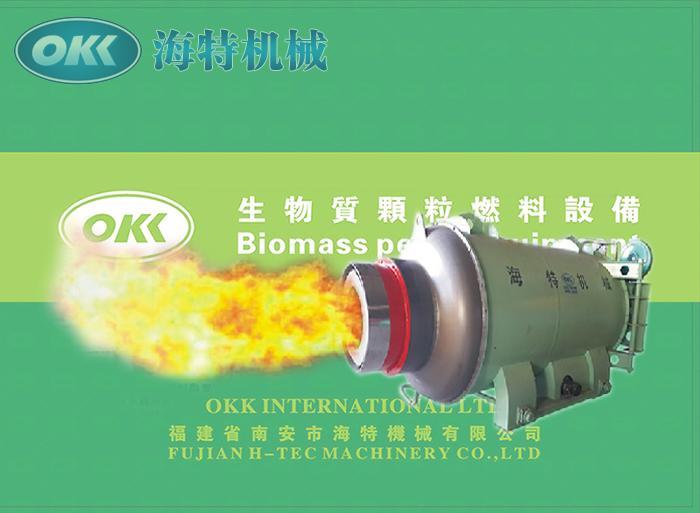

Picture:
